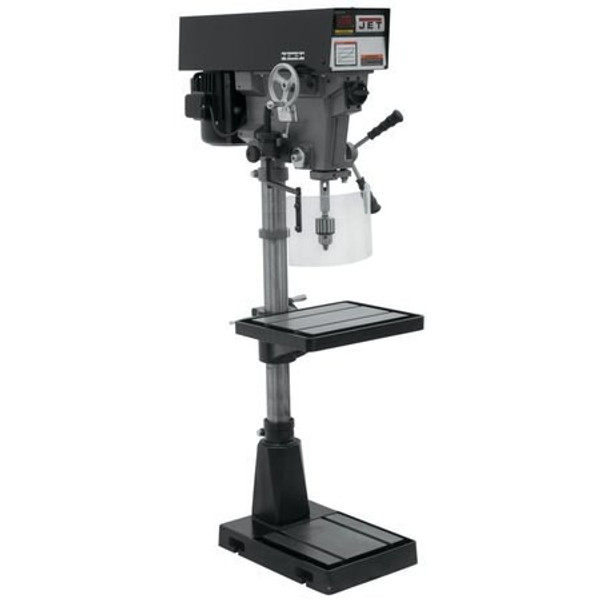

These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.
Features:
- Speeds from 400 to 5000 RPM
- Handwheel adjustment sets the speeds
- Large 2-1/4" quill allows greater accuracy
- 3" column diameter for maximum spindle stiffness
- 6" stroke for deep hole applications
- Accurate depth stop for precise hole depths
- 1/2" drill chuck and arbor
- Safety collar
Specifications:
- Style (Type) Variable
- Drills to Center of Circle (in) 15
- Drilling Capacity Cast Iron (In.) 5/8
- Drilling Capacity Mild Steel (In.) 1/2
- Distance Column to Spindle (In.) 7-1/2
- Number of Spindle Speeds Variable
- Range of Spindle Speeds (RPM) 400 - 5,000
- Column Diameter (In.) 3
- Spindle Taper (In. x TPI) MT-2
- Spindle Travel (In.) 6
- Spindle Distance to Base (In.) 44-1/2
- Spindle Distance to Table (Max.) (In.) 25-3/4
- Table Size (L x W) (In.) 15 x 18
- Table Travel (In.) 16-3/4
- T-Slots Number and Size (In.) 2 & 1/2
- T-Slot Centers (In.) 5-5/16
- Work Table Weight Capacity (Lbs.) 90
- Base Dimensions (In.) 20-7/16 x 14-3/16
- Base Work Table (In.) 12-1/8 x 11-13/16
- Base Slots Number & Size (In.) 2 & 1/2
- Motor (HP) 1 HP, 230/460V, 3Ph
- Prewired (V.) 230
- Overall Dimensions (L x W x H) (In.) 30 x 20 x 71
- Weight (Lbs.) 426
