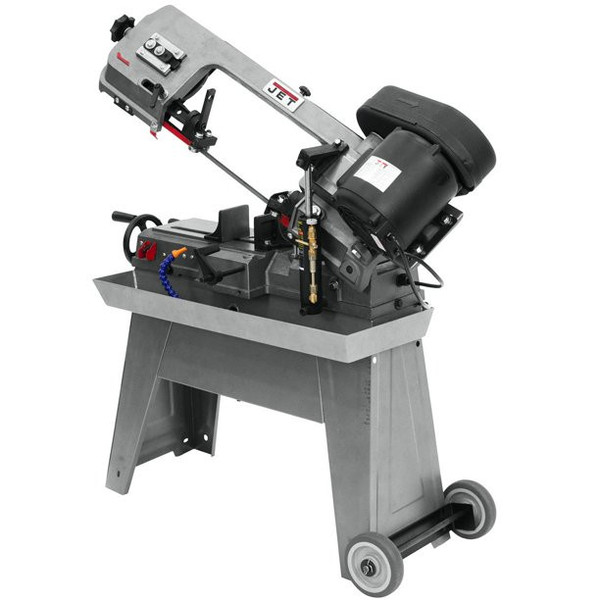

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.
Features:
Adjustable hydraulic feed system
Adjustable ball bearing guides
Heat treated steel worm gear and bronze driver gear
Automatic shut off at end of cut
Handles and wheels for convenient moving to various work stations
Eccentric shaft and ball bearing guides
Standard Equipment:
1 gallon capacity coolant system with hose, flexible nozzle, shut off valve, tank and baffle
1/2" Carbon steel blade
Adjustable material stop
Specifications:
Motor (HP) 1/2 HP, 115V, 1Ph
Cutting Capacity (W x D) (In.) 5 x 8
Blade Speeds (SFPM) 85, 125, 200
Round at 90 Degrees (In.) 5
Round at 45 Degrees (In.) 4-1/2
Rectangle at 90 Degrees (In.) 7-1/2 x 5
Rectangle at 45 Degrees (In.) 4-1/2 x 5
Vise Swivels (Deg.) 45
Overall Dimensions (L x W x H) (In.) 37 x 16 x 37
Blade Length (In.) 68
Bed Height (In.) 23-1/2
Blade Wheel Diameter (In.) 7-1/2
Blade Size (In.) 1/2 x .025 x 68
Motor Phase 1
Weight (Lbs.) 134
Prewired (V.) 115
