Description

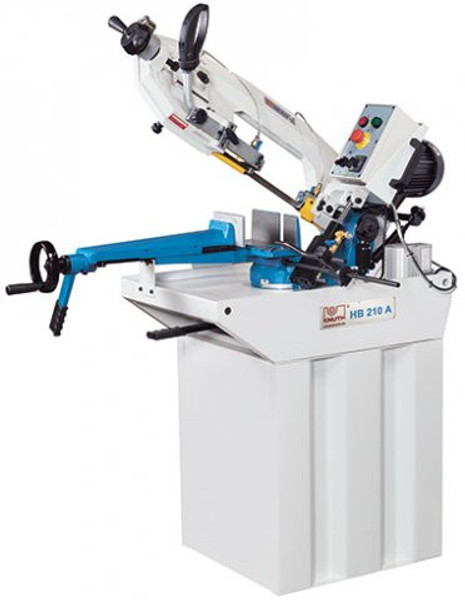

The compact horizontal band saw with one-piece saw frame made of gray cast iron is suitable for miter cuts and is a handy solution for every workshop.
Features
- For miter cuts, the operator moves the saw frame - not the material
- Hydraulic cylinder provides for infinitely variable support pressure and saw frame feed (HB 210 A / HB 250 A)
- Cast-iron saw frame, one-piece construction
- Two speeds for cutting optimization
- Hydraulic down feed for “-a” models
- Vise with quick-action clamping feature
Standard Equipment
- 1 saw blade
- Coolant system
- Base
- Quick-action vise
- Hydraulic cylinder for saw frame
- Operator instructions
Specifications
- Cutting Capacities
- Cutting capacity 0°
- Round: 9”
- Flat (length x width): 10” x 7”
- Cutting capacity 45°
- Round: 6”
- Flat (length x width): 8” x 6”
- Cutting capacity 60° round: 4”
- Belt speed: 131 / 295 fpm
- Cutting capacity 0°
- Drive Capacity
- Main motor rating: 1.48 Hp
- Measures and Weights
- Overall dimensions (length x width x height): 54” x 23” x 36”
- Weight: 407 lbs.
