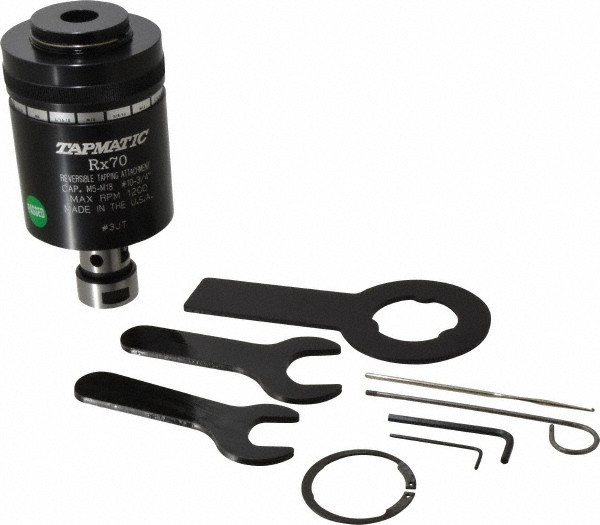

Tapmatics newest attachment for high production with heavy duty ball clutch. Tapmatic RX self reversing tapping attachments meet the most difficult requirements.
Features:
- Provides for reduced tap breakage
- Produces perfect threads
- Reduced cycle times through increased reverse speeds
- Allows for longer tap life
Specs
| Shank Type | Taper Shank |
| Taper Size | JT3 |
| Minimum Tap Capacity (Inch) | #10 |
| Minimum Tap Capacity (mm) | M5 |
| Maximum Aluminum Tap Capacity (Inch) | 3/4-16 |
| Maximum Aluminum Tap Capacity (mm) | M18 |
| Maximum Mild Steel Tap Capacity (Inch) | 3/4-16 |
| Maximum Mild Steel Tap Capacity (mm) | M18 |
| Quick Change | No |
| Series | RX |
| Machine Type | Manual |
| Maximum RPM | 1200 |
| Body Diameter (mm) | 88.00 |
| Overall Length (mm) | 182.00 |
| Model Number | RX70 |
| Collet Compatibility | 24100 (J441); 24500 (J445) |
| Gear Ratio | 1.75:1 |
| Includes | Tap Clamping Wrenches |
