Standard Equipment

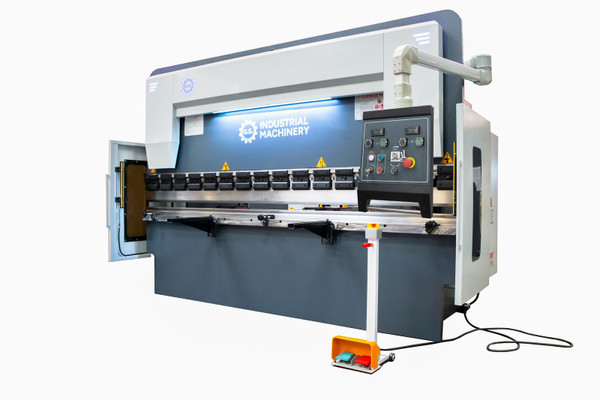

- Manual Press Brake
- Power Front Operated Back Gauge, motorized with fine adjustment handwheel
- Power Ram Depth Control, motorized with fine adjustment handwheel
- Digital Displays for backgauge position and ram position
- All Steel Construction
- Sick 4000 Light Curtain
- Ram accepts standard American Tang tooling, ½" x 5/8"
- Space between Ram Tool Clamps allows for deep box bending
- Bed has slot for standard American Tang tooling
- Bed also has capture clamps for tooling without tang
Options Included
- Sick Model 4000 Light Curtain System
Specifications
- Working Pressure: 88 Tons
- Length of Working Table: 125.9"
- Distance Between Housings: 106.2"
- Throat Depth: 9.8"
- Stroke Adjustment of Ram: 1.96"
- Ram Travel: 3.93"
- Open Height: 13.7"
- Rapid Ram Travel Speed: 2.4" / Sec.
- Rapid Ram Retreat Speed: 2.0" / Sec.
- Backgauge Travel: 24"
- Pressing Speed: Dependent on Tool Load
- Hydraulic Oil Capacity: 79 Gal.
- Motor Horsepower: 10 HP
- Net Weight: 14,332 lbs.
- Length: 148"
- Width: 64"
- Height: 90"
Options
- Sick Model 4000 Light Curtain System
- Fiessler Akas II Laser Guarding
- Pilz PSENvip LED Safety Guarding
- Training packages at US Industrial showroom or customers site
