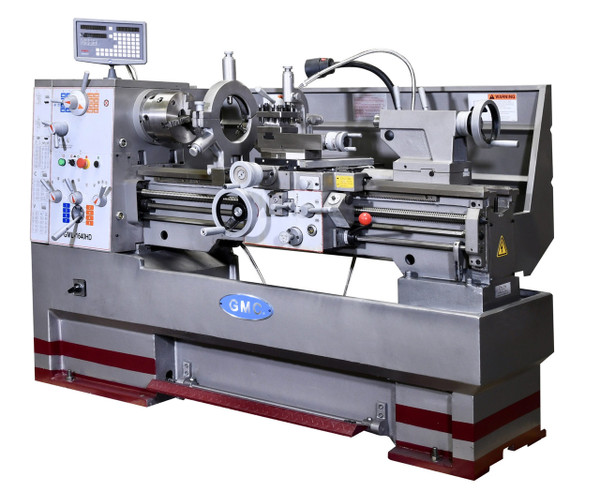

GMC Machinery 16” x 40” Heavy Duty Precision Gap Bed Lathe GML-1640HD

(No reviews yet) Write a Review
Price: $13,850.00
SKU:
GML-1640HD
Roll over image to zoom in

Standard Features

  • ISO 9001 certified
  • Large spindle bore 2-1/16”
  • Heavy Duty spindle D1-6
  • One-piece solid cast iron machine base
  • Heavy Duty guideway width 10-1/4”
  • Heavy Duty main motor 6 HP
  • 16 spindle speeds from 45-1,800 rpm, speeds: 45/ 75/ 90/ 130/ 160/ 195/ 210/ 260/ 350/ 390/ 600/ 690 / 790 / 910/ 1,200/ 1,800 rpm
  • 45 kinds of inch threads, and 39 kinds of metric threads
  • Threading and feeding rate change without changing gears
  • Spindle is balanced, hardened and precision ground
  • Spindle is supported at 3-point by high precision bearings
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • One year warranty for parts

Included Equipment:

  • Free Taper turning attachment installed
  • 8” 3-jaw chuck with one set reversible jaws
  • 10” 4-jaw chuck
  • 12” Face plate
  • 5 1/2” large steady rest with roller jaws
  • Oil pump on Apron for all guideways and leadscrews
  • 2” follow rest
  • Removeable gap
  • 4-way tools post
  • Foot brake
  • Coolant system
  • Halogen Work light
  • Full length splash guard
  • (2) dead centers and (1) reducing sleeve MT6/MT4
  • Thread chasing dial
  • Tool box and leveling pads

Specifications

  • Max. swing over bed: 16-1/16"
  • Max. length of workpiece: 40"
  • Max. swing over cross slide: 10 1/4"
  • Max. Swing in gap: 23 1/4"
  • Width of Bed: 10 1/4"
  • Effective length in gap to spindle: 8 1/2"
  • Effective length in gap to chuck jaws: 3 1/2"
  • Spindle bore: 2 1/16" D1-6
  • Taper of spindle center: M.T. #6 (MT6/MT4 sleeve)
  • Spindle speeds: 45-1,800 rpm / 16 steps
  • Longitudinal feeds: 0.0018-0.07 IPR, 42 kinds
  • Cross feeds: 0.0009-0.03 IPR, 42 kinds
  • Inch threads: 70-2 TPI, 45 kinds
  • Metric threads: 0.2-14 mm , 39 kinds
  • Diametral Pitch threads: 8-40 DP , 21 kinds
  • Module threads: 0.3-3.6 mm, 18 kinds
  • Max. travel of top slide: 4 1/4"
  • Max. travel of cross slide: 8 1/2"
  • Spindle length w/o chuck: 20 ½
  • Leadscrew length X TPI: 1 1/4" x 4 TPI
  • Diameter of tailstock quill: 2 1/16"
  • Max. travel of tailstock quill: 5”
  • Taper of tailstock quill center: MT4
  • Main motor: 6 HP, 220V, 3 Phase
  • Coolant pump:1/8 HP, 220V, 3 phase
  • Net weight: 4,150 lbs.
  • Overall dimensions, LxWxH: 79" x 38" x 56"
