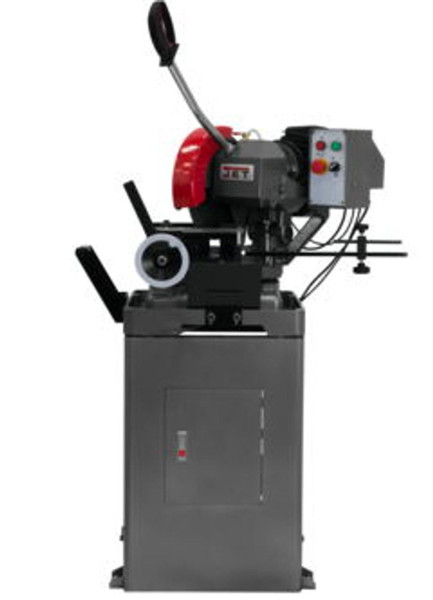

Jet 414227 CS-315, 315mm Ferrous Manual Cold Saw

(No reviews yet) Write a Review
Price: $3,379.00
SKU:
JT414227
UPC:
662756127853
Roll over image to zoom in

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty.

Features:

  • Now available in Single Phase 230V
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Blade drive reduction gearbox operates in an oil bath for increaded durability
  • Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
  • 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left
  • Fully adjustable material depth stop for sawing repeatability and increased


Specifications:

  • Style (Type) Ferrous
  • Blade Speeds (RPM) 52, 104
  • Tubing Round at 90 Degrees (In.) 3-1/2
  • Tubing Round at 45 Degrees (In.) 3-1/2
  • Tubing Square at 90 Degrees (In.) 3-1/5 x 3-1/5
  • Tubing Square at 45 Degrees (In.) 2-3/5 x 2-3/5
  • Tubing Rectangle at 90 Degrees (In.) 4 x 3-1/5
  • Tubing Rectangle at 45 Degrees (In.) 2-1/5 x 2-3/5
  • Solid Round at 90 Degrees (In.) 3-1/2
  • Solid Round at 45 Degrees (In.) 3-1/2
  • Solid Square at 90 Degrees (In.) 3-1/5 x 3-1/5
  • Solid Square at 45 Degrees (In.) 2-3/5 x 2-3/5
  • Solid Rectangle at 90 Degrees (In.) 4 x 3-1/5
  • Solid Rectangle at 45 Degrees (In.) 2-1/5 x 2-3/5
  • Blade Size (Mm.) 315 x 32 x 2
  • Maximum Vise Opening (In.) 4-3/4
  • Motor (HP) 2 HP, 230V, 3Ph
  • Motor Phase 3
  • Prewired (V.) 230
  • Overall Dimensions (L x W xH) (In.) 39 x 37 x 69
  • Weight (Lbs.) 390
