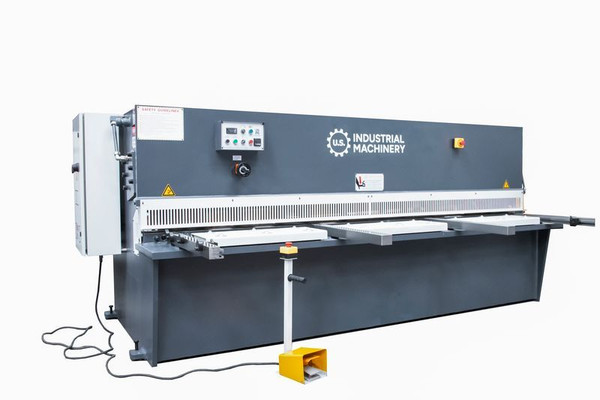

U.S. Industrial’s manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well.
Features
Squaring Arm with inlaid scale, 39”
Bolt on table segments…quantity of 3
High Carbon, High Chrome Shear Blades
Hold-downs faced w/anti-mar neoprene
Ball Transfers on Each Table Segment
Swing Beam Design
Manual Quick Change Blade Gap Adj.
Pressure Sensing Hold Downs
Squaring Arm, 39” from blade to end
Electric Stroke Adjustment
Stroke Counter
Operator Control Console
Front-operated Power Back Gauge with DRO
Shadow Line with LED lighting
Blade Guard, Micro Switch Protected
Low Noise Gear Pump
Hydraulic, Electrical Overload Protection
Support Arms Included
Automatic Swing-up on Back Gauge
6CrW2Si blades for cutting mild carbon steel
Material drop/support chute
Specifications
Sheet Size: 74”
Shearing Capacity:
3/8” Mild Steel @ 65,000 PSI UTS
3/16” Stainless Steel @ 95,000 PSI UTS
(Must consider option for Cr12MoV blades.)
Shear Angle: 1 Degree 30’
No Load Strokes: 12
Throat Depth: 5.5”
Adjustment Range of Back Gauge: 0.75” - 36”
Hydraulic Oil Capacity: 66 Gal
Main Motor: 20 HP, 220 or 440 Volts, 3 phase (Please specify your voltage requirement.)
Net Weight: 18,841 lbs.
Dimensions (L x W x H): 107” x 80” x 70”
Options
3-Axis CNC Programmable Back Gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200-program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode
Material drop chute only (*This device makes it easier to retrieve sheared drops and is normally required by customers.)
Upgrade to Pneumatic Sheet Support AND Material drop chute
Upgrade to 6-Foot Squaring Arm with inlaid scale
Upgrade to 8-Foot Squaring Arm with inlaid scale
Upgrade to 10-Foot Squaring Arm with inlaid scale
Upgrade Cr12MoV blades for cutting up to 3/16” thick stainless
Upgrade to 48” Back Gauge; no swing up
Training packages at US Industrial showroom or customers site
