Standard Features
- ISO 9001 certified
- With free SINO DRO installed
- With free Taper Attachment installed

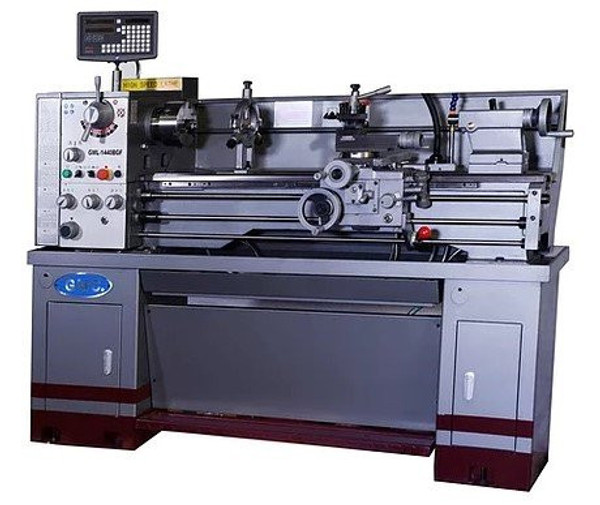

- Full Geared-head precision Engine Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- Heavy Duty main motor 3HP, 220V, 1 phase
- Spindle bore 1 1/2”
- Heavy Duty spindle D1-4
- Heavy Duty guideway width 7 1/2”
- 8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
- 56 kinds of inch threads, and 44 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year warranty for parts
Included Equipment:
- Free SINO DRO installed
- Free Taper Attachment installed
- 6” 3-jaw chuck with set reversible jaws
- 8” 4-jaw chuck with set reversible jaws
- 10” Face plate
- 3 ¾” large steady rest
- 2” follow rest
- Foot brake
- Coolant system
- Halogen work light
- 4-way tools post
- Full length splash guard
- (2) dead centers and (1) reducing sleeve
- Thread chas
Specifications
- Max. swing over bed: 14"
- Max. length of workpiece/Max. length of cutting: 40"
- Max. swing over cross slide: 8 1/4"
- Width of Bed: 7 1/2"
- Spindle bore: 1 1/2" D1-4
- Taper of spindle center: M.T. #5 (MT5/MT3)
- Spindle speeds: 70-2,000 RPM / 8 steps
- Longitudinal feeds: 0.00168-0.11750 IPR, 24 kinds
- Cross feeds: 0.00046-0.03231 IPR, 24 kinds
- Inch threads: 4-112 TPI, 56 kinds
- Metric threads: 0.1-7.0 mm , 44 kinds
- Diametral Pitch threads: 16-112 DP, 32 kinds
- Module threads: 0.1 – 1.75 mm , 34 kinds
- Max. travel of top slide: 4 1/4"
- Max. travel of cross slide: 7 1/4"
- Spindle speeds, 8 steps: 70/115/190/300/460/755/1255/2000 rpm
- Diameter of tailstock quill: 1 1/2"
- Max. travel of tailstock quill: 4"
- Taper of tailstock quill center: MT3
- Main motor: 3HP, 220V, 1phase
- Coolant pump: 1/16HP, 220V, 1phase
- Net weight: 1,730 lbs.
- Overall dimensions, LxWxH: 70" x 35" x 59"
