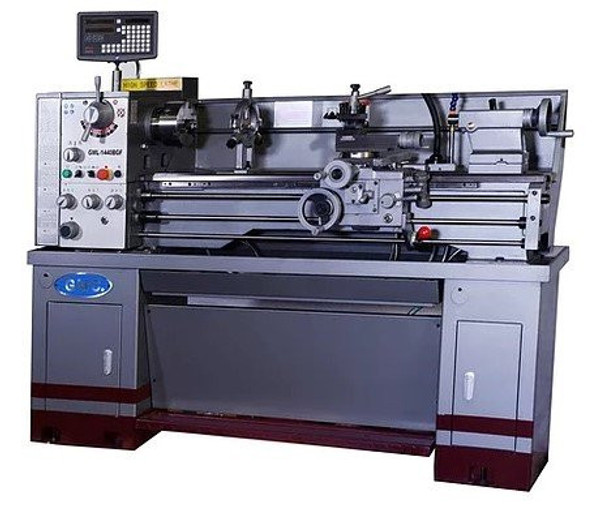

GMC Machinery 14” x 40” Three Phase High Speed Precision Gap Bed Tool Room Engine Lathe GML-1440BGF-3

(No reviews yet) Write a Review
Price: $8,150.00
SKU:
GML-1440BGF-3
Roll over image to zoom in

Standard Features

  • ISO 9001 certified
  • With free SINO DRO installed
  • With free Taper Attachment installed
  • Full Geared-head precision Engine Lathe with foot brake
  • Quick-change gearbox with fast and easy threading set up
  • Heavy Duty main motor 3HP, 220V, 3 phase
  • Spindle bore 1 1/2”
  • Heavy Duty spindle D1-4
  • Heavy Duty guideway width 7 1/2”
  • 8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
  • 56 kinds of inch threads, and 44 kinds of metric threads
  • Spindle is balanced, hardened and precision ground
  • All gears and shafts are hardened and precision ground
  • Guideways induction hardened and precision ground
  • Automatic lubrication system in headstock and feed box
  • One year warranty for parts

Included Equipment:

  • Free SINO DRO installed
  • Free Taper Attachment installed
  • 6” 3-jaw chuck with set reversible jaws
  • 8” 4-jaw chuck with set reversible jaws
  • 10” Face plate
  • 3 ¾” large steady rest
  • 2” follow rest
  • Foot brake
  • Coolant system
  • Halogen work light
  • 4-way tools post
  • Full length splash guard
  • (2) dead centers and (1) reducing sleeve
  • Thread chas

Specifications

  • Max. swing over bed: 14"
  • Max. length of workpiece/Max. length of cutting: 40"
  • Max. swing over cross slide: 8 1/4"
  • Width of Bed: 7 1/2"
  • Spindle bore: 1 1/2" D1-4
  • Taper of spindle center: M.T. #5 (MT5/MT3)
  • Spindle speeds: 70-2,000 RPM / 8 steps
  • Longitudinal feeds: 0.00168-0.11750 IPR, 24 kinds
  • Cross feeds: 0.00046-0.03231 IPR, 24 kinds
  • Inch threads: 4-112 TPI, 56 kinds
  • Metric threads: 0.1-7.0 mm , 44 kinds
  • Diametral Pitch threads: 16-112 DP, 32 kinds
  • Module threads: 0.1 – 1.75 mm , 34 kinds
  • Max. travel of top slide: 4 1/4"
  • Max. travel of cross slide: 7 1/4"
  • Spindle speeds, 8 steps: 70/115/190/300/460/755/1255/2000 rpm
  • Diameter of tailstock quill: 1 1/2"
  • Max. travel of tailstock quill: 4"
  • Taper of tailstock quill center: MT3
  • Main motor: 3HP, 220V, 3 phase
  • Coolant pump: 1/16HP, 220V, 1phase
  • Net weight: 1,730 lbs.
  • Overall dimensions, LxWxH: 70" x 35" x 59"
