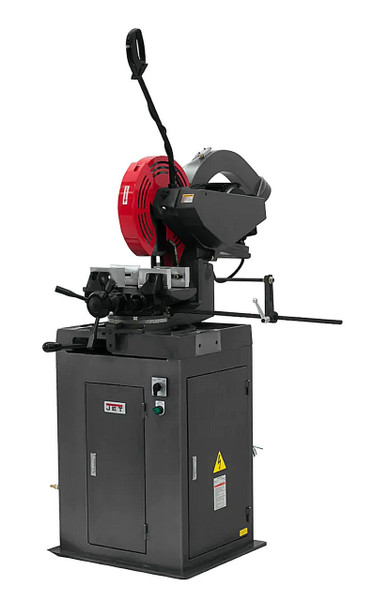

Jet 414207K J-CK350-4K, 350mm Non-Ferrous High Speed Manual Cold Saw 460V

(No reviews yet) Write a Review
Price: $8,029.00
SKU:
JT414207K
UPC:
731325167511
Roll over image to zoom in

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty.

Features:

  • 350mm (14") Non-Ferrous High Speed Cold Saw
  • Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left, and 90° (center), capable of slotting
  • Two-piece blade guard system permits quick and easy blade changes without removing the guards
  • Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
  • Double self centering vise with adjustable gibs secures the material for burr free cuts
  • Flood style coolant with flow control system extends blade life
  • 30" adjustable length material stop
  • High-Speed NF-350mm Blade included
  • High-Speed NF-350mm Blade


Specifications:

  • Style (Type) Non-Ferrous
  • Blade Speeds (RPM) 1750, 3500
  • Tubing Round at 90 Degrees (In.) 4-1/2
  • Tubing Round at 45 Degrees (In.) 3-1/2
  • Tubing Square at 90 Degrees (In.) 4-1/4 x 4-1/4
  • Tubing Square at 45 Degrees (In.) 3-1/2 x 3-1/2
  • Tubing Rectangle at 90 Degrees (In.) 5-1/2 x 3-3/4
  • Tubing Rectangle at 45 Degrees (In.) 3-1/2 x 3-1/2
  • Solid Round at 90 Degrees (In.) 3
  • Solid Round at 45 Degrees (In.) 2-1/2
  • Solid Square at 90 Degrees (In.) 3 x 3
  • Solid Square at 45 Degrees (In.) 2-1/2 x 2-1/2
  • Solid Rectangle at 90 Degrees (In.) 3 x 3
  • Solid Rectangle at 45 Degrees (In.) 2-1/2 x 2-1/2
  • Blade Size (Mm.) 350 x 32 x 3-2/5
  • Maximum Vise Opening (In.) 6
  • Motor (HP) 2 HP, 460V, 3Ph
  • Motor Phase 3
  • Prewired (V.) 460
  • Overall Dimensions (L x W xH) (In.) 25 x 52 x 73
  • Weight (Lbs.) 683
