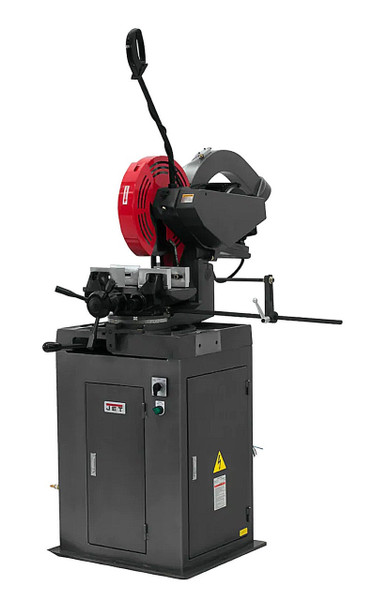

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty.
Features:
- 350mm (14") Ferrous Cold Saw for steel, stainless and tough to cut alloys
- Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
- Quick tension and release mitering capabilities with stops at 45° right, 45° left, and 90° (center), capable of slotting
- Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
- Hardened and ground worm screw and wheel drive gear box operates in an oil bath for added durability
- Double self centering vise with adjustable gibs secures the material for burr free cuts
- Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
- Thermal overload protection with magnetic starter for increased electrical safety
- Flood style coolant with flow control system extends blade life
- 30" adjustable length material stop
Specifications:
- Style (Type) Ferrous
- Blade Speeds (RPM) 44, 88
- Tubing Round at 90 Degrees (In.) 4-1/2
- Tubing Round at 45 Degrees (In.) 3-1/2
- Tubing Square at 90 Degrees (In.) 4-1/4 x 4-1/4
- Tubing Square at 45 Degrees (In.) 3-1/2 x 3-1/2
- Tubing Rectangle at 90 Degrees (In.) 5-1/2 x 3-3/4
- Tubing Rectangle at 45 Degrees (In.) 3-1/2 x 3-1/2
- Solid Round at 90 Degrees (In.) 2
- Solid Round at 45 Degrees (In.) 1-3/4
- Solid Square at 90 Degrees (In.) 2 x 2
- Solid Square at 45 Degrees (In.) 1-3/4 x 1-3/4
- Solid Rectangle at 90 Degrees (In.) 2 x 2
- Solid Rectangle at 45 Degrees (In.) 1-3/4 x 1-3/4
- Blade Size (Mm.) 350 x 32 x 2-1/2
- Maximum Vise Opening (In.) 6
- Motor (HP) 2 HP, 230V, 1Ph
- Motor Phase 3
- Prewired (V.) 230
- Overall Dimensions (L x W xH) (In.) 50 x 28 x 60
- Weight (Lbs.) 794
